Power Supply Voltage:115/230VAC
Detection Range:0.5 to 200 feet (approx.)
Operating Temperature:-4°F to 140°F (-20°C to 60°C)
Alerting Capability:Audible and visual alarms
Installation Method:Wall or ceiling mountable
Response Time:Less than 0.5 seconds
Reliability Rating:Industry-leading reliability

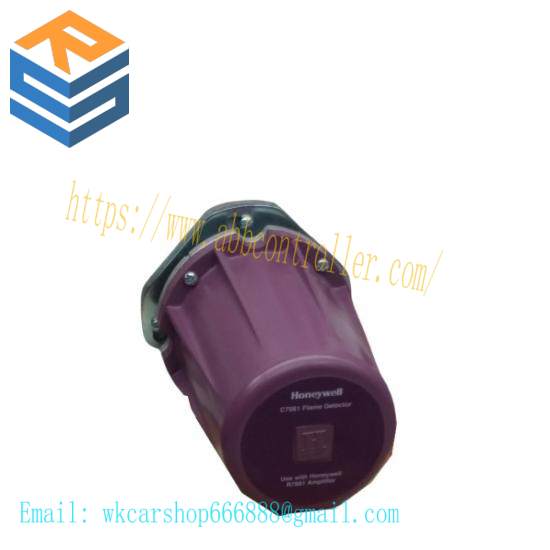

Introducing the Honeywell C7061A1020 UV Flame Detector, a robust and precise instrument designed for critical flame detection in industrial environments. This device employs advanced ultraviolet technology to swiftly identify flames within the spectral range of 350nm to 390nm, making it an indispensable component in safeguarding against hazardous incidents.
Featuring unparalleled sensitivity at 0.01 mW/m², this detector ensures that even the slightest indication of a flame can be accurately detected, preventing potential accidents before they escalate. With its wide operating temperature range of -20°C to +55°C and excellent humidity tolerance of 0% to 95% RH non-condensing, it’s engineered to withstand harsh conditions found in various industrial settings.
The Honeywell C7061A1020 is equipped to work seamlessly with 115/230VAC power sources, providing versatility in installation across diverse environments. Its efficient current consumption of ≤ 20mA minimizes energy usage while ensuring reliability. The device offers a clear and concise output signal via a contact closure relay, compatible with 10-30VDC power and capable of handling a maximum of 1A.
For ease of integration, the detector supports both NC and NO types of relay contacts, catering to different circuit requirements. It is designed for in-line installation, secured through bolted connections for added stability. The robust IP65 environmental protection rating ensures durability against dust and water ingress, further enhancing its suitability for industrial applications.
Backed by rigorous testing and certified to meet international standards, including UL/CSA/CUL, CE, and EAC, the Honeywell C7061A1020 UV Flame Detector is a testament to quality and reliability. Trust in Honeywell’s commitment to safety and innovation, and secure your industrial operations with this top-tier flame detection solution.
