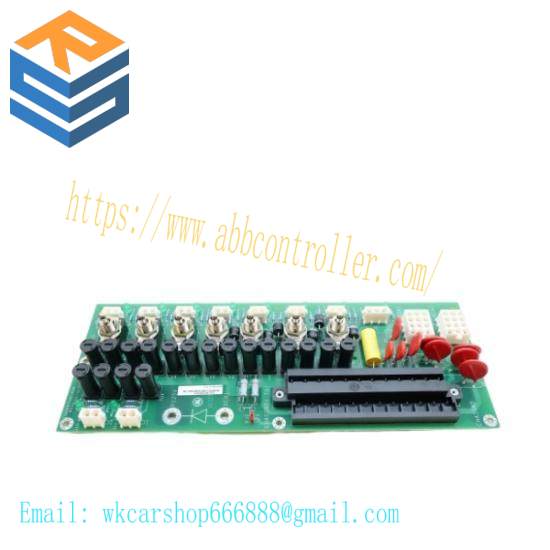

GE IS200TBCIH1BBC – Contact Terminal Board for Mark VI Gas and Steam Turbines

Manufacturer:General Electric

Model:IS200TBCIH1BBC

Series:Mark VI

Type:Contact Terminal Board

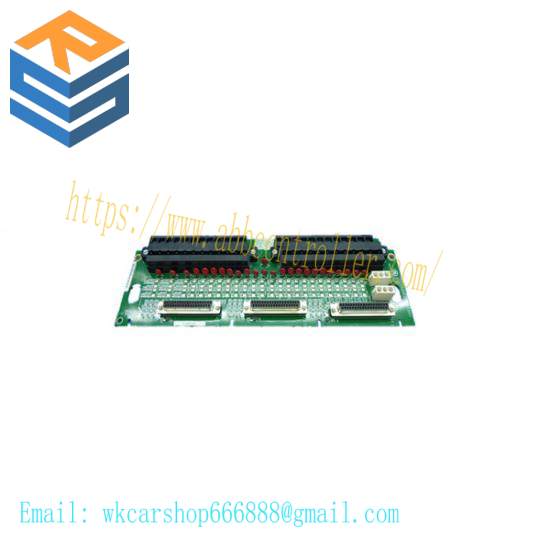

Terminal Blocks:Two large solid black terminal blocks with forty-eight terminals each

Resistors:Three black variable resistors or potentiometers

Dimensions:Not specified in the document

Weight:Not specified in the document

    The GE IS200TBCIH1BBC is a critical component in the Mark VI series of control systems, designed specifically for gas and steam turbine operations in industrial environments. As a contact terminal board, it facilitates the connection and management of various electrical signals and controls necessary for the smooth operation of these turbines. The board is equipped with two large terminal blocks that provide a robust connection point for 48 terminals each, ensuring reliable and efficient signal transmission. Additionally, three black variable resistors are strategically placed at the top right of the board, allowing for precise adjustments and calibration. Constructed with high-quality materials, this terminal board is built to withstand the demanding conditions of industrial settings, providing long-lasting performance and reliability. The design of the GE IS200TBCIH1BBC ensures easy integration into existing control systems, making it an indispensable part of any turbine control setup. By utilizing this terminal board, industries can achieve optimal control over their gas and steam turbines, leading to increased efficiency and reduced downtime.
