Display Size:5-inch color LCD
Resolution:640×480 pixels
Operating System:Allen-Bradley PanelView Plus
Processor Speed:400 MHz
Memory:64 MB RAM, 32 MB Flash
Ethernet Connectivity:Built-in Ethernet port
Communication Protocols:Modbus TCP/IP, DeviceNet, EtherNet/IP
Power Supply:12-24 VDC
Enclosure Type:IP65 front panel, NEMA 12 enclosure

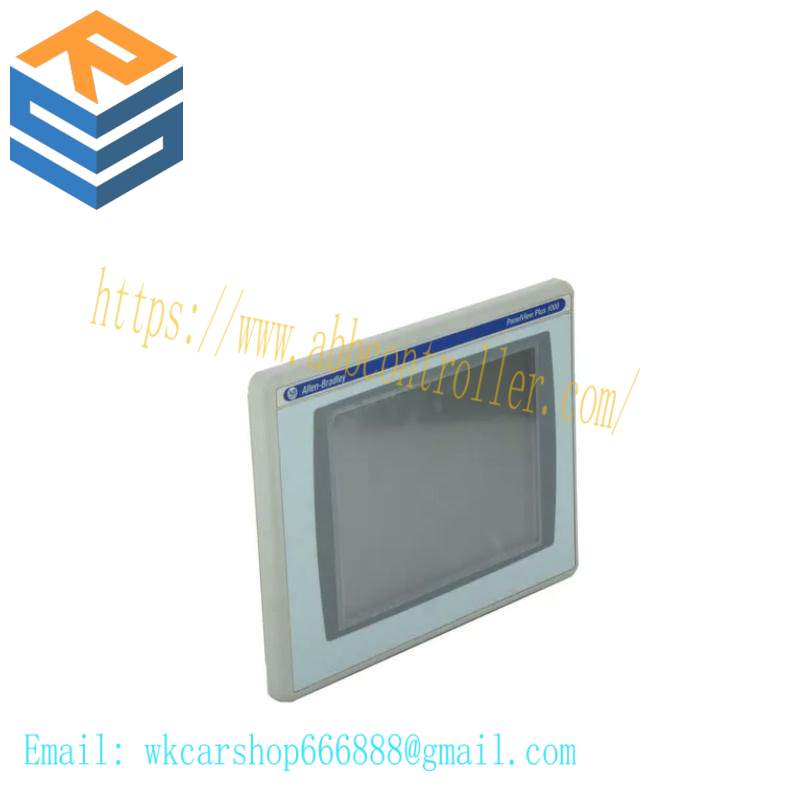

The Allen Bradley 2711P-RDT10C/A Plus Display Module is a state-of-the-art human-machine interface (HMI) designed specifically for industrial environments. It offers an intuitive color LCD touchscreen with capacitive technology, providing operators with a responsive and user-friendly experience. This module seamlessly integrates with Allen-Bradley’s PanelView software, enabling efficient monitoring and control of complex automation systems.
Equipped with a high-speed processor capable of up to 100 million instructions per second (MIPS), the 2711P-RDT10C/A ensures smooth operation and fast response times, crucial for real-time data processing in manufacturing processes. Its robust memory capacity of 2 MB Flash and 8 MB RAM supports extensive data storage and application execution.
The module supports multiple connectivity options including Ethernet/IP, DeviceNet, and serial interfaces (RS-232/485), facilitating easy connection to various industrial devices and networks. With an operating temperature range from -10°C to 55°C and an IP65 enclosure rating, it is designed to withstand harsh industrial conditions, ensuring reliable performance in diverse environments.
Featuring an efficient power consumption of 15 watts at maximum, this module optimizes energy usage without compromising on functionality. Its compact size, measuring 243 mm x 187 mm x 64 mm, makes it suitable for space-constrained applications while maintaining high performance standards.
The Allen Bradley 2711P-RDT10C/A Plus Display Module is compatible with Windows Embedded Standard and VxWorks operating systems, offering flexibility in integration with existing industrial automation systems. This versatile HMI solution is ideal for enhancing productivity, efficiency, and operator satisfaction in modern industrial settings.
