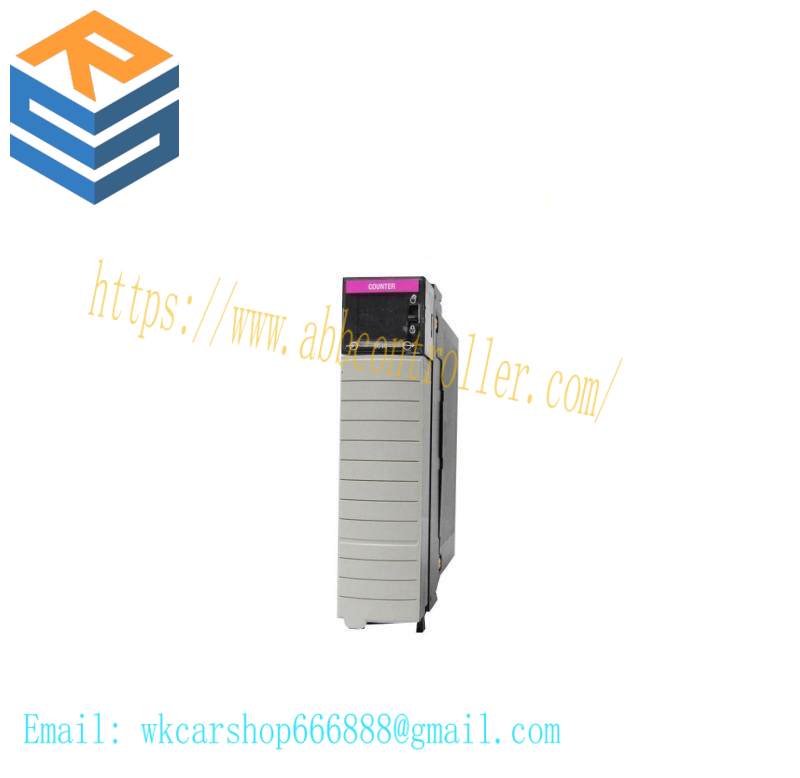

Allen Bradley 1756-HSC ControlLogix High-speed Counter Module – Precision Timing and Counting for Industrial Automation

Model Number:AB 1756-HSC

Module Type:Counter Module

Processing Speed:Up to 1 MHz

Counting Channels:4

Resolution:1 μs

Power Supply:DC 24V

Communication Interface:ControlNet, DeviceNet, Ethernet/IP

Operating Temperature:-20°C to +60°C

Humidity Range:5% to 95% non-condensing

    The AB ControlLogix 1756-HSC module is engineered for demanding applications requiring precise timing and motion control, offering unmatched reliability and performance in industrial automation systems. Its high-speed processing capability allows for seamless integration into complex machinery, ensuring efficient operation across various industries.

    Featuring four independent counting channels, this module provides versatile functionality, suitable for a wide range of applications from conveyor systems to robotics. The exceptional resolution of 1 μs ensures accuracy in tracking and measurement, making it ideal for high-speed processes.

    With support for multiple communication interfaces including ControlNet, DeviceNet, and Ethernet/IP, the AB 1756-HSC module facilitates easy connectivity with other industrial devices, enhancing system flexibility and interoperability.

    Engineered to withstand challenging industrial environments, the module operates within a temperature range of -20°C to +60°C, ensuring reliable performance regardless of the ambient conditions. Its humidity tolerance up to 95% non-condensing further enhances its durability in humid settings.

    Built with robust materials and advanced circuitry, the AB ControlLogix 1756-HSC High-speed Counter Module is designed for long-term use without compromising on performance. It supports both standard and custom programming, enabling users to tailor the module’s functionality to meet specific project requirements.
