Number of Channels:16
Common Mode Voltage Range:-20 to +20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS
Input Range:-20 to +20 mA
Absolute Input Current:-30 to +30 mA
Voltage Rating:Overvoltage protection: 7.5 VAC RMS
Input Range for DC:-10 to +10 VDC – 1 LSB
Current Rating:Backplane current draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Rating:Backplane: 2.425 W, Enclosure: Open Type
Weight:N/A (open-type enclosure)

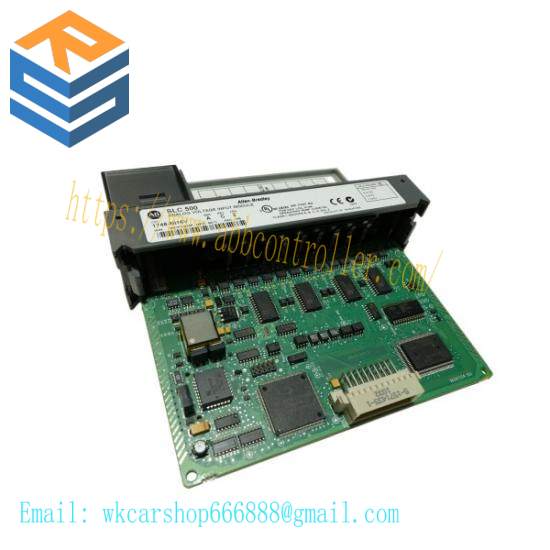

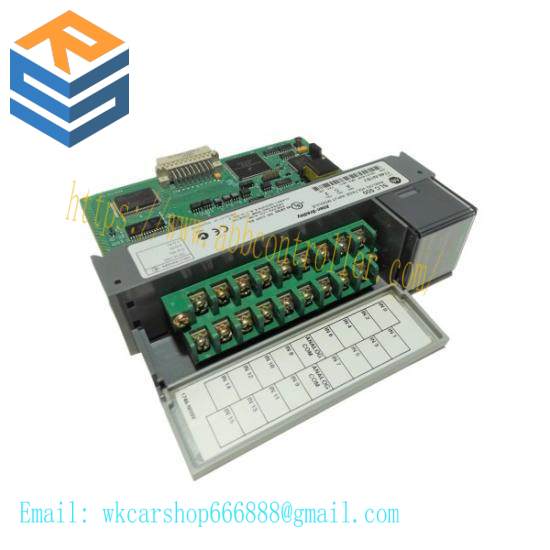

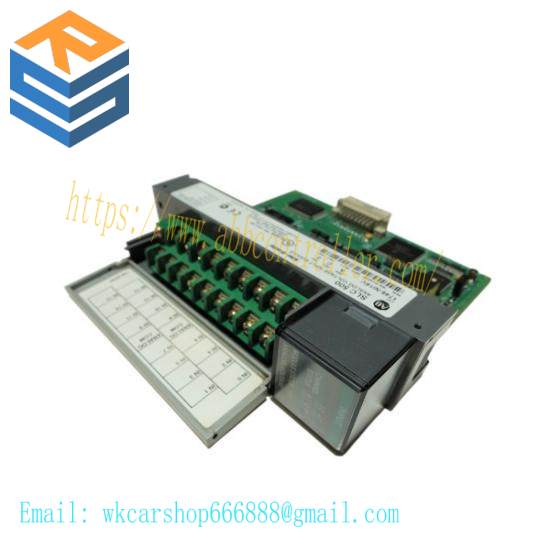

This high-resolution analog input module from Allen Bradley is engineered for applications requiring exceptional precision and reliability in industrial environments.
With its robust design, the 1746-NI16V is capable of handling a wide range of input signals, from -20 to +20 milliamps, ensuring accurate data collection.
Featuring 16 channels, this module offers flexibility and scalability, making it suitable for various industrial settings that demand precise control and monitoring.
The inclusion of overvoltage protection ensures the module remains functional even under extreme electrical conditions, enhancing system safety and uptime.
Designed with an open-type enclosure, this module allows for easy integration into diverse industrial systems, providing a versatile solution for automation tasks.
Backed by Allen Bradley’s reputation for quality and reliability, the 1746-NI16V is a trusted choice for engineers and technicians looking to enhance their automation projects with precision and efficiency.
