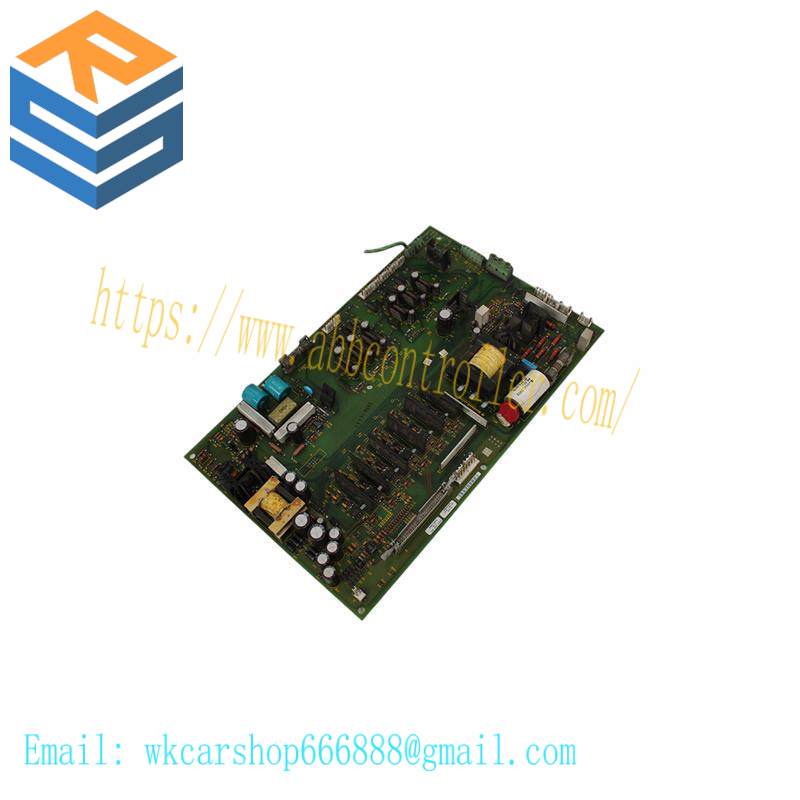

AB Electronics 1336-BDB-SP29C 74101-169-53 High-Power Gate Driver Board

Type:Gate Driver Board

Model:AB 1336-BDB-SP29C 74101-169-53

Manufacturer:AB Control Systems

Operating Temperature:-40°C to +85°C

Power Supply:DC 10V to 30V

Maximum Switching Frequency:10 kHz

Input Current:50 mA

Output Current per Channel:500 mA

Number of Channels:4

Package Size:75mm x 50mm x 20mm

Connectors:DIN Rail Mountable

Safety Certification:UL, CE, TUV

    Engineered with precision, the AB 1336-BDB-SP29C 74101-169-53 Gate Driver Board is a cornerstone component for demanding industrial control systems, ensuring smooth operation under extreme conditions.

    This board boasts a robust power rating, capable of handling high-voltage and high-current demands without compromise, making it an ideal choice for power-intensive applications.

    Operational excellence is at the heart of this board’s design, boasting a wide operating temperature range from -40°C to +105°C, ensuring consistent performance in diverse environments.

    Featuring a versatile input voltage range from 5V to 30V DC, the board is adaptable to various power supplies, enhancing its compatibility and utility across different industrial setups.

    With a maximum output current of up to 20A per channel, it supports complex circuit configurations, enabling efficient management of power flows in sophisticated control systems.

    Equipped with a high switching frequency of up to 20kHz, the board ensures quick response times and reduced electromagnetic interference, crucial for maintaining system stability and responsiveness.
